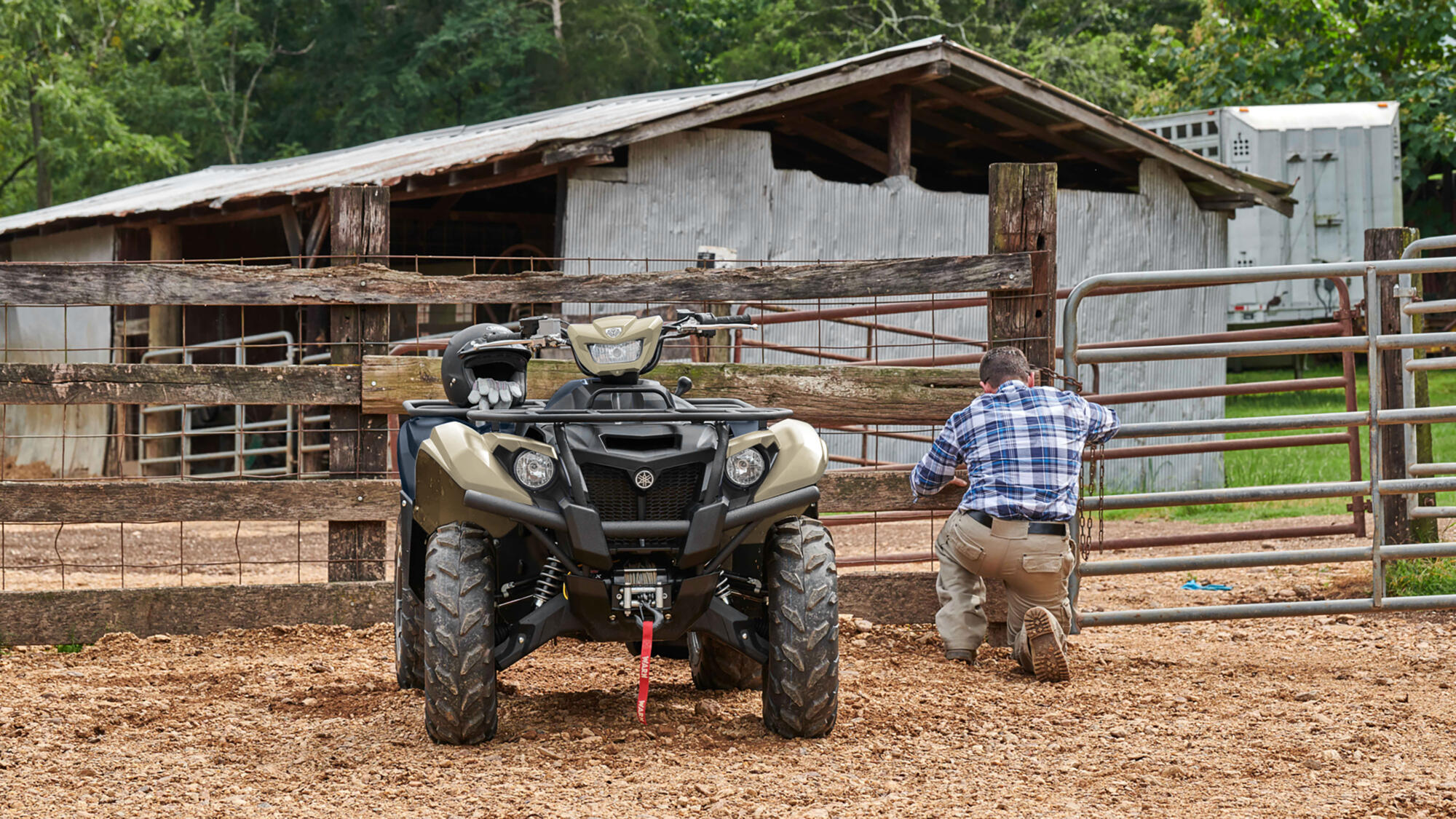

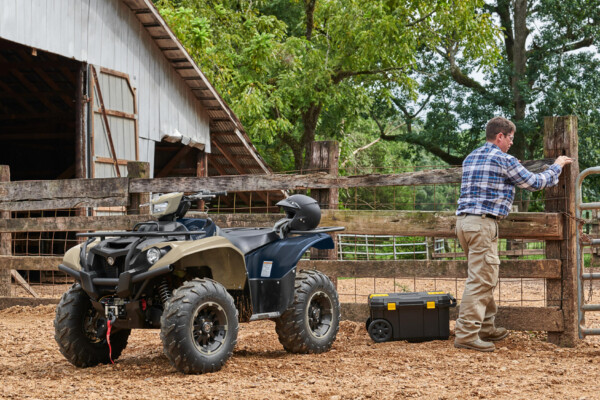

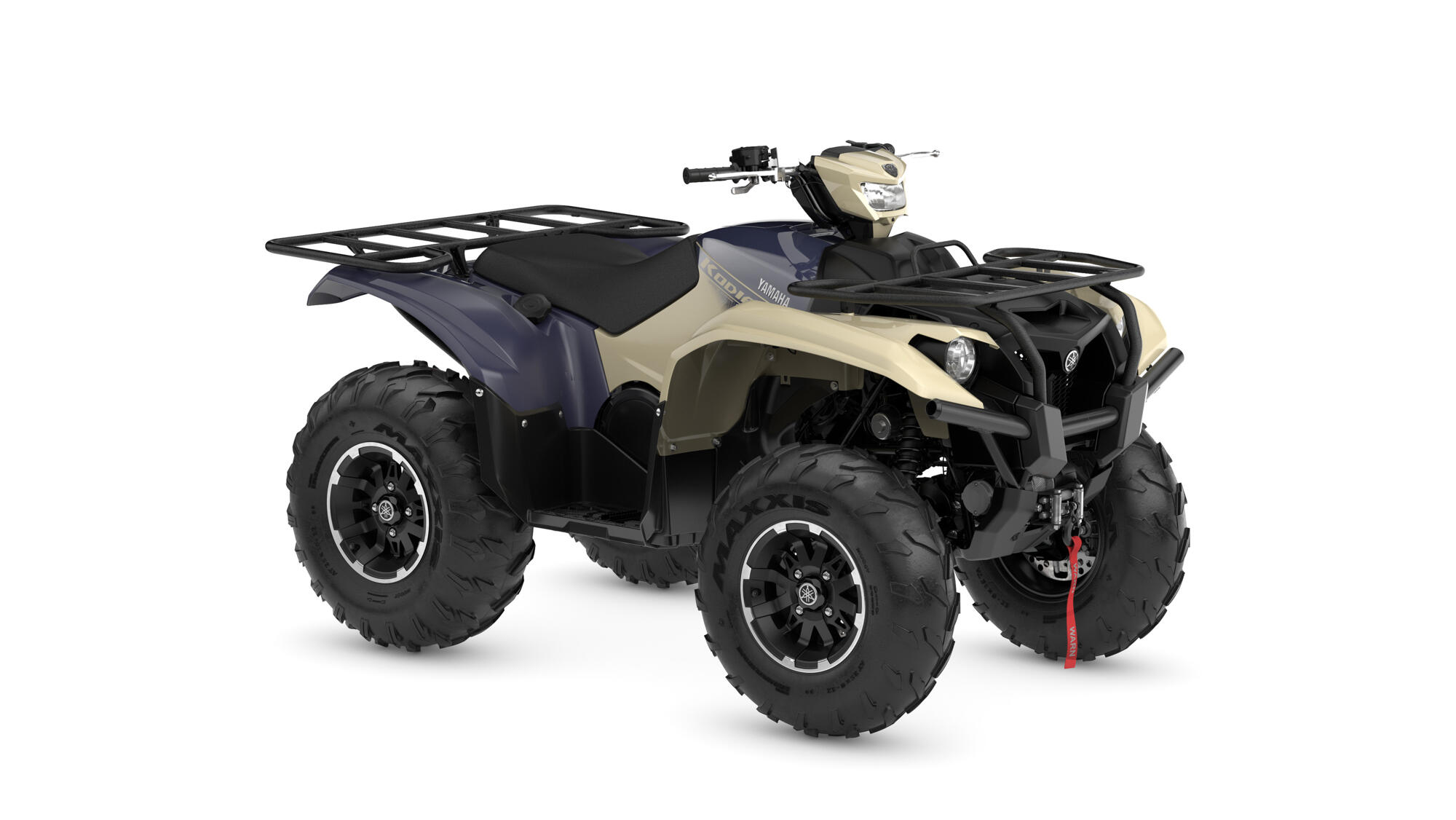

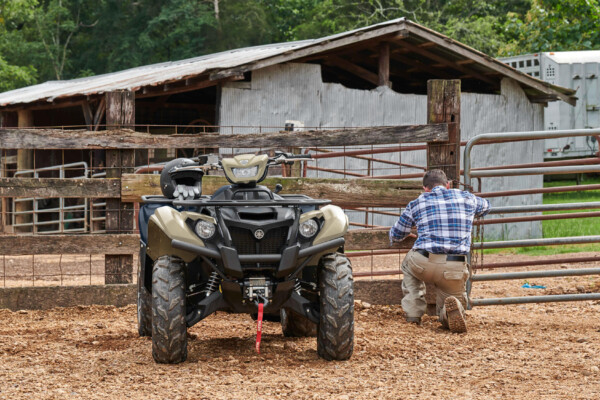

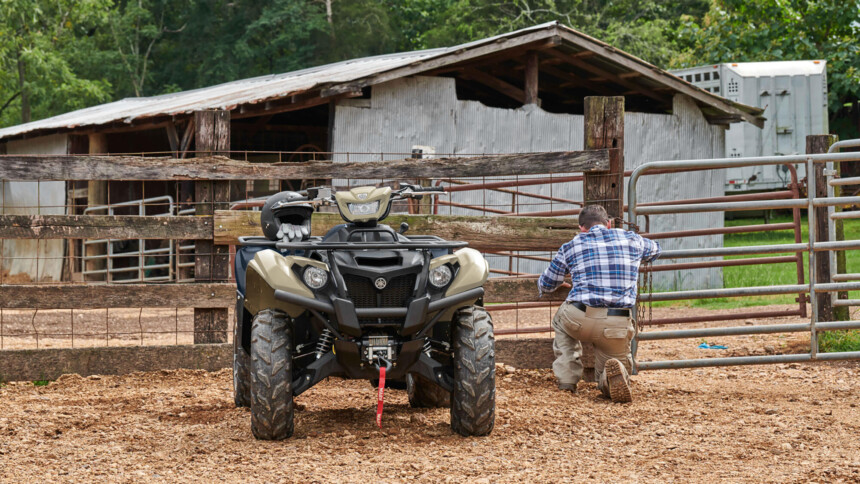

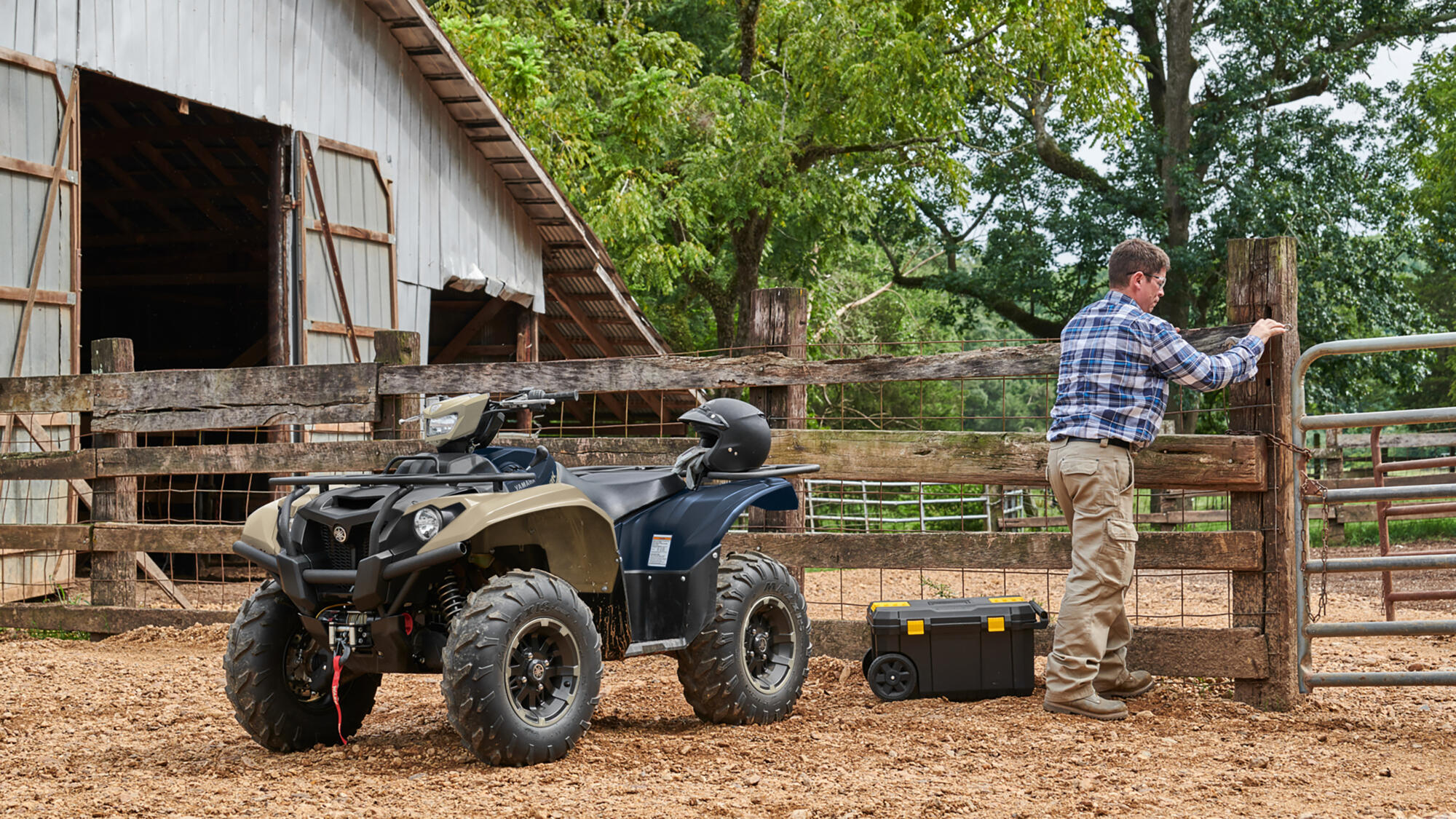

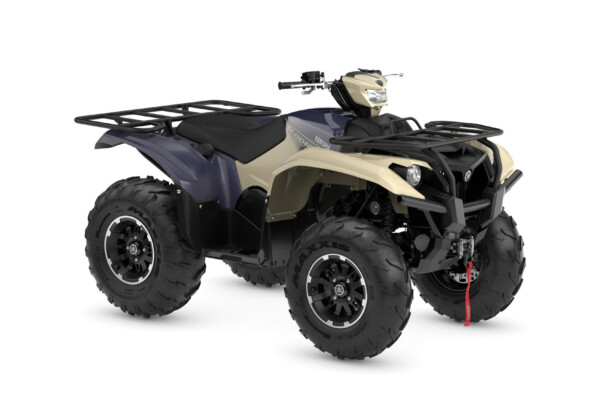

Yamaha Kodiak 700 EPS SE ATV Quad Bike 2022

Powered by Yamaha’s well-proven, high torque MK II 686cc engine and featuring a compact chassis with a plush seat for day-long riding comfort, this extraordinary worker can carry a 140 kg payload plus rider – and tow up to 600 kg. The smooth-running Ultramatic® CVT transmission and 2WD/4WD system with Diff-lock make this ATV ideal for towing, and the Electric Power Steering makes every working day that little bit easier.

-Pro utility ATV with a luxury twist
-High-torque engine with powerful 686cc SOHC 4-stroke
-The most durable ATV transmission on the market
-On the Fly Driver selectable wheel drive system
-Large cooling capacity for work and towing
-Professional capacity to stow and tow cargo
-Self & Buddy rescue with standard winch
-Low maintenance hybrid stopping power
-Comfortable and terrain capable suspension
-Less fatigue and more precise handling with EPS
-SE two-tone painted body & aluminium wheels
-Yamaha quality with high reliability

MACHINE SPECIFICATIONS

ENGINE
Engine type
Liquid-cooled, SOHC, Single cylinder, 4-stroke, 4-valves
Displacement
686 cc
Bore x stroke
102.0 mm x 84.0 mm
Compression ratio
10.0 : 1
Lubrication system
Wet sump
Fuel system
Electronic Fuel Injection
Ignition system
TCI
Starter system
Electric
Transmission system
L/H/N/R/P, Ultramatic® V-belt with front- and rear wheel engine braking
Drive system
On-Command® 2WD, 4WD, 4WD with Diff-lock
Final transmission
Shaft

CHASSIS
Front suspension system
Independent double wishbone, 180 mm stroke, 5 position preload adjustment
Rear suspension system
Independent double wishbone, 230 mm stroke, 5 position preload adjustment
Front brake
Dual ventilated hydraulic disc
Rear brake
Multi-disc wet rear brake in rear gearcase
Front tyres
Maxxis MU19 AT25x8-12, E marked, aluminium wheels
Rear tyres
Maxxis MU19, AT25x10-12, E Marked, aluminium wheels

DIAMENTIONS
Overall length
2,070 mm
Overall width
1,180 mm
Overall height
1,240 mm
Seat height
860 mm
Wheelbase
1,250 mm
Minimum ground clearance
275 mm
Min. turning radius
3.2 m
Fuel tank capacity
18.0 L
Oil tank capacity
2.6 L

LOADING LIMITS
Front rack
50 kg
Rear rack
90 kg

ADDITIONAL FEATURES
Steering system
Ackermann-type with Electronic Power Steering
Front Mounted Winch
WARN Pro-Vantage 2500
Trailer Hitch
2″Receiver Trailer style hitch, Handle bar worklight, Digital Meter, Painted Body Plastics, Aluminium casted wheels
Towing capacity
600 kg
